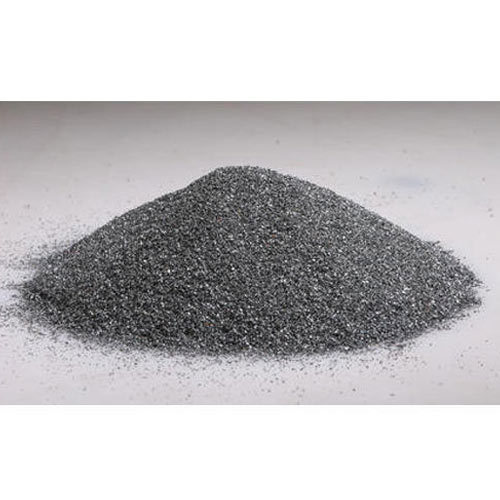

FOUNDRY INOCULANTS


  1. GARINOCULANT-S/SB : GARINOCULANT-S/SB is having a unique property of reducing chill without increasing the cell number in same proportion which is not possible in other inoculating material. Because of powerful chill reduction with low cell count tendency of micro shrinkage in casting reduces which in turn gives a pressure tight casting.
  2. GARINOCULANT-ZR : Fesi doped with Zr as primary element and for special applications Ba and Mn are also added; very effective even with low bath sulphur; good for grain refinement.
  3. GARINOCULANT-10 : Garinoculant 10 is Ferro-Silicon & Carbon based Inoculation with controlled amount of Calcium, Aluminum along with some active Inoculating agent.
  4. GARINOCULANT-15 : Garinoculant-l5G is Ferro-Silicon and Carbon based inoculants with controlled amounts of Calcium and Aluminum along with some special inoculating agents.
  5. GARINOCULANT-SBC : Fesi doped with varying amounts Ba and Manganese;very effective for all general purpose application; provides longest fading time;specially useful in pouring very large castings;moderate price and hence very popular.
  6. GARINOCULANT-2
  7. GARCOVER-1 : Garcover – 1 is a flux for Aluminum and its alloys. It is a free flowing pink color powder containing chlorides, Florides Sulphates and carbonates of alkali metals like Sodium and Potassium. lt is used as a cleaning and drossing-off flux specially for ingot and clean scrap melted for sand or die castings. Garcover – 1 Forms a protective layer over the molten Aluminum reducing oxidation and hydrogen pick-up. Its cleaning action removes oxides and non-metallic impurities leaving dry dross exceptionally low in metal content.
  8. GARFIX-8 : This Item is used in Foundry for molding Ferrous & Non Ferrous Casting.
  9. GARFIX-8 (TIN) : This Item is used in Foundry for molding Ferrous & Non Ferrous Casting.
  10. GARFIX 25 : This Item is used in Foundry for molding Ferrous & Non Ferrous Casting.
  11. GARFLUX-7 : A range of covering and protecting fluxes for Copper base alloys, suitable for melting all types of scraps. They include fluxes for Bronze, Si bronze and high Tensile Brasses, Oxidising fluxes for commercial Copper, Gun Metals, Tin Bronzes and Nickel alloys to reduce Hydrogen pick up and eliminate porosity.
  12. GARFLUX-18 : A range of covering and protecting fluxes for Copper base alloys, suitable for melting all types of scraps. They include fluxes for Bronze, Si bronze and high Tensile Brasses, Oxidising fluxes for commercial Copper, Gun Metals, Tin Bronzes and Nickel alloys to reduce Hydrogen pick up and eliminate porosity.

PURE METALS


  1. Silicon Metals : Silicon Metal Comes with 99% purity and it is used in stainless steel foundry, steel plants, and investment castings.
  2. Chrome Metals : Chrome Metal have purity of 99% it is used in steel foundries, Investment Castings, and foundries those who produce alloy steel castings.
  3. Manganese Metals : Manganese metals have purity of 99%. it is used in steel castings, investment castings, steel plants, stainless steel castings manufactures
  4. Moly Metals : Moly metal have purity of 99%. It is used in stainless steel plants, steel foundries, and investment castings.
  5. Tungsten Metals : Tungsten metal has purity of 99%. It is mainly used in steel foundries, investment castings and
    Steel  plants.
  6. NICKEL : Nickel come in plate, rod, pallets form, with purity of 99%. It is used in steel foundries, investment castings, steel plants, nickel coatings.

FURAN RESINS IN TWO PARTS


Crystal Foundry Chemicals Pvt. Ltd. is a leading trader of quality Foundry Two Part Resin in Ahmedabad for last 20 years.

  1. SINOTERM-TN-1214 : Sinotherm TN 1214 is a cold curing Nitrogen free liquid phenolic formaldehyde resole resin. This resin is suitable for the production of cores and moulds for gray cast iron, ductile iron, cast steel and non ferrous heavy metals.
  2. HARDNER-S 1214 : Hardner S 1214 is a solution of organic acid from sulfonic acid group. Hardner S 1214 is especially suitable for accelerated curing of Furan No Bake Resin even under low temperature conditions.
  3. RESITAL – 4920 (P) : Resital 4920 P, Phenolic Novolac Resin is in powdered form. Resital 4920 P can be tailored according to individual requirement of Flow length, Melting point, Curing time This phenol formaldehyde novolac resin has a fineness of – 200 mesh min and is suitable for application in various industries such as refractory, moulding powder, grinding wheel etc. Resital 4920 has very good carbonization properties due to which it is an excellent source of carbon as well as a binder in the production of shaped refractory resin.
  4. RESITAL-5100 : Resital 5100 is liquid Phenol Formaldehyde Resin for coating of sand for making cores and moulds by shell process. This resin is suitable for warm coating process.
  5. HARDNER – 4920 (Common for all shell Resins) : Hardner R 4920 is a White amorphous looking finely ground mixture of Hexa Methyl Tetramine and Calcium Streate in suitable proportion in order to impart ideal curing properties along with optimum releasing characteristics. When used as Hardner along with Resital 4920 (Phenol Formaldehyde Shell Resin). The ideal percentage to be used is 16-18% of Resital 4920 for a standard resin coated sand.
  6. GASHARZ – 5271 ; Gasharz 5271 is a benzylic ester type synthetic resin for cold box process. It is remarkable for its high thermal stability, extreme long bench life of the sand mixture, low odour levels. It is characterized by very low sticking tendency and low moisture sensitivity. This is a three-part system with Activator and liquid amine catalysts which cures the resin.
  7. ACTIVATOR – 4108 : This is a modified solvent containing Poly Isocynate. Gasher2 5271 is combined with Activator for use.
  8. CATALYST – 5271 : Catalyst 5271 is tertiary amine initiator for the cold box process.
  9. SINOTERM – 5022 : Sinotherm 5022 GS is an alkaline phenolic resole resin which can be hardened by using a warm acidic gas. It has a very low odour level and it gives the sand mix an improved sand flowability. Excellent collapsible properties are achieved after pouring.
  10. ACTIVATOR – 3340 :
  11. KALTHARZ – 70 P : Nitrogen free furan resin with minimum 70% Furfural Alcohol Content. Kaltharz 70 p is a cold curing resin with free formaldehyde content and has very high productivity. It can be used for making molds & cores for steel & gray iron castings. Most suitable for use in continuous mixers.
  12. ACTIVATOR – 100 T3 : This is a common Hardener for all types of Furan Resins. This is a solution of organic acid from ic acid group & suitable for accelerating curing of Furan Resins even under loco temperature conditions.
  • Color -Colorless to pale yellow
  • Boiling Point-1700 c Density-1.13 G/cc Soluble Solvents-Alcohols

    FERRO ALLOYS


    Crystal Foundry Chemicals Pvt. Ltd. is a leading trader of quality FERROW ALLOYS, FERRO BORN, FERRO CHROME, FERRO MANGNESE, FERRO MOLY, FERRO NIOBIUM, FERRO PHOSPHOROUS, FERRO SILICON, FERRO SILICON MAGNASIUM, FERRO SILICON ZIRCONIUM, FERRO TITANIUM, FERRO TUNGSTAN, FERRO VANADIUM, CALCIUM SILICIDE, ALLUMINIUM SHOT, ELECTROLYTIC IRON, NICKEL SCRAP in Ahmedabad for last 20 years.

    Specification Of FERRO BORON :

    • Size : 10-50mm (Approx)
    • Bo : 15% to 20% (Approx)
    • Si : 0.40% (Approx)
    • S  : 0.003% (Approx)
    • P : 0.031% (Approx)
    • C : 0.306 (Approx)

    Specification Of FERRO CHROME L.C. :

    • Size : 10-100mm (90%Min) (Approx)
    • Cr : 60% to 65% (Approx)
    • Si : 0.50% (Approx)
    • C : 0.076% (Approx)
    • S : 0.005% (Approx)
    • P : 0.021% (Approx)

    Specification Of FERRO CHROME H.C. :

    • Size : Lumps
    • Cr : 60% to 65% (Approx)
    • Si : 2% to 4% (Approx)
    • C : 6% to 8% (Approx)
    • S : 0.038% (Approx)
    • P : 0.027% (Approx)

    Specification Of FERRO MOLY :

    • MO: 60.00% (Approx)
    • Si: 0.80% (Approx)
    • S: 0.05% (Approx)
    • P: 0.04% (Approx)
    • C: 0.05% (Approx)

    Specification Of FERRO NIOBIUM :

    • Size : 10-30 mm (90% Minimum)
    • Nb : 50%(Minimum)
    • Si : 2% to 4%(Approx)
    • Al : 0.72%(Approx)
    • Ta : 0.33%(Approx)
    • Pb : 0.18%((Approx)
    • C: 0.08%(Approx)
    • S : 0.3%(Approx)
    • P : 0.4%(Approx)

    Specification Of FERRO PHOSPHORUS :

    • P : 22.0-28.0% (Approx)
    • Mn : 3.0% max. (Approx)
    • Si : 3.0% max. (Approx)
    • Ti : 1.5% max. (Approx)
    • Cr : 0.6% max. (Approx)
    • V : 0.6% max. (Approx)

    Specification Of FERRO SILICON :

    • Size : 25-150mm (Approx)
    • Si : 70.70% (Approx)
    • Al : 01.04% (Approx)
    • C : 0.094% (Approx)
    • P : 0.033% (Approx)
    • S : 0.026% (Approx)

    Specification Of FERRO SILICON MAGNESIUM (Imported) :

    • Size:5-15mm (90pct min) (Approx)
    • Si : 40% to 45% (Approx)
    • Mg : 8% to 10% (Approx)
    • Re : 1% to 2% (Approx)
    • Ca : 1% to 2% (Approx)
    • Al : 0.5% to 1.5% (Approx)

    Specification Of FERRO SILICO ZIRCONIUM :

    • Size : 20-80 mm (90%min.) (Approx)
    • Si : 50% to 55% (Approx)
    • Zr : 15% to 18% (Approx)
    • Al : 1% to 2% (Approx)
    • C : 0.3% (Approx)
    • S : 0.03% (Approx)
    • P : 0.03% (Approx)

    Specification Of FERRO TITANIUM :

    • Titanium (Ti) : 30% to 35% (Approx)
    • Silicon (Si) : 2% to 4% (Approx)
    • Carbon (C) : 1.5% (Approx)
    • Sulphur (S) : 0.04% (Approx)
    • Phosphorus (P) : 0.03% (Approx)
    • Aluminum (Al) : 6% (Approx)

    Specification Of FERRO TUNGSTEN :

    • Size : 10-50mm (Approx)
    • W : 77.53% (Approx)
    • As : 0.062% (Approx)
    • C : 0.100% (Approx)
    • Cu : 0.0745% (Approx)
    • S : 0.071% (Approx)
    • Sb : 0.037% (Approx)
    • P : 0.048% (Approx)
    • Sn : 0.049% (Approx)
    • Si : 0.40% (Approx)
    • Mn : 0.23% (Approx)
    • Pb : 0.003% (Approx)

    Specification Of FERRO VANADIUM :

    • Size : 10-50mm (Approx)
    • V : 50% (Approx)
    • C : 0.26% (Approx)
    • Si : 1% to 2% (Approx)
    • P : 0.017% (Approx)
    • S : 0.021% (Approx)
    • Mn : 0.21% (Approx)
    • Al : 0.61% (Approx)
    • Fe : 13.39% (Approx)
    • Cu : 0.17% (Approx)
    • As : 0.008% (Approx)

    Specification Of FERRO SILICO CALCIUM :

    • Size : 10-100mm (90% Min) (Approx)
    • Si : 50% to 55% (Approx)
    • Ca : 32.7% (Approx)
    • Al : 1.8% (Approx)
    • C : 30% to 35% (Approx)
    • S : 0.05% (Approx)
    • P : 0.029% (Approx)

    Specifivation Of ALUMINIUM SHORT :

    • Silicon : 0.300 (Approx)
    • Copper : 0.100 (Approx)
    • AI : 95% to 99% (Approx)
    • Magnesium : 0.800 (Approx)
    • Zinc : 0.032 (Approx)
    • Iron : 0.600 (Approx)
    • Manganese : 0.700 (Approx)
    • Lead : 0.090 (Approx)
    • Aluminium : 97.100 (Approx)

    Specification Of IRON BRIQUETTES :

    • Size : Lumps
    • C : 0.005 to 0.010% (Approx)
    • S : 0.014 to 0.025% (Approx)
    • P : 0.018 to 0.025% (Approx)
    • FE : 99%

    Nickel is used in many industrial and consumer products, including stainless steel, magnets, coinage, rechargeable batteries, electric guitar strings and special alloys. It is also used for plating and as a green tint in glass. Nickel is pre-eminently an alloy metal, and its chief use is in the nickel steels and nickel cast irons, of which there are many varieties. It is also widely used in many other alloys, such as nickel brasses and bronzes, and alloys with copper, chromium, aluminium, lead, cobalt, silver, and gold.

    Specification Of NICKEL CATHODES FERRO ALLOYS :

    Ni : 99.80%
